Product features

• ? Meet the requirements of new and old ISO 7637-2 and ISO 16750-2 standards

• ? 7-inch touch screen operation;

• ? Support multi language, convenient for different users;

• ? Built in environment automatic detection program, automatically detect the test environment and remind users;

• ? Programmable operation, realizing the setting function with one key;

• ? Built in high-power digital DC source;

• ? RS 232/usb interface, PC control and print test report.

Product parameters

• Product model





  P5a





  Pulse voltage us





  Input impedance ri





  Pulse width TD





  Rising edge tr





  Pulse interval T1





  Pulse times:





  P5b





  Pulse voltage us





  Mid pulse limiting voltage US1





  Input impedance ri





  Pulse width TD





  Rising edge tr





  Mid pulse interval T1





  Pulse times n





  EUT power capacity





  Equipment power supply

• RV P5


  12V system /24v system


  40~102V/100~202V


  0.5Q~8Q


  40ms ~ 400ms


  5ms ~10ms


  1min ~ 5min


  1~9999 times


  12V system /24v system


  40~102V/100~202V


  20~102V/20 ~202V


  0.5~82


  40ms ~ 400ms


  5ms ~ 10ms


  1min ~ 5min


  1~9999 times


  20A


  AC220V±10%50/60Hz

Product recommendation

Impulse current generator sur 1ka

Model：SUR 1KA

The intelligent lightning surge generator sur 1ka is used to conduct surge impact tests on surge protection devices such as arrester resistors, varistors, discharge tubes, SPD, TVs, etc. the product produces 8/20us surge pulse waveform, and the technical indicators of the waveform comply with national standards and IEC standards. The product has passed the ministerial appraisal, and its main technical performance is in the leading position in China, reaching the advanced technology of similar international products.

Learn more

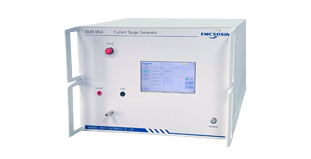

Impulse current generator sur 6ka

Model：SUR 6KA

The lightning surge generator sur 6ka is used to inspect the anti surge protection devices such as zinc oxide arrester valve piece, varistor, SPD, TVs tube, gas discharge tube, etc. for surge impact test. The product produces 8/20us surge pulse waveform, and the technical indicators of the waveform comply with the provisions of national standards and IEC standards.

Learn more

Impulse current generator sur 20KA

Model：SUR 20KA

The lightning surge generator sur 20KA is used to inspect the anti surge protection devices such as zinc oxide arrester valve piece, varistor, SPD, TVs tube, gas discharge tube, etc. for surge impact test. The product produces 8/20us surge pulse waveform, and the technical indicators of the waveform comply with the provisions of national standards and IEC standards.

Learn more
